Model | WS66B | |||||
Displacement | 66ml/r | |||||
Range of Voltage | DC 380V | DC 600V | ||||
Refrigerant | HFC 134a | HFC 134a | HFC 134a | HFC 134a | HFC 134a | HFC 134a |
Oil | POE 68 | POE 68 | POE 68 | POE 68 | POE 68 | POE 68 |
Charge Amount | 160ml | 160ml | 160ml | 160ml | 160ml | 160ml |
Range of Roation | 3000-5000rpm | 3000-5000rpm | 3000-5000rpm | 3000-5000rpm | 3000-5000rpm | 3000-5000rpm |
Speed Range | PWM/CAN/LIN | PWM/CAN/LIN | PWM/CAN/LIN | PWM/CAN/LIN | PWM/CAN/LIN | PWM/CAN/LIN |

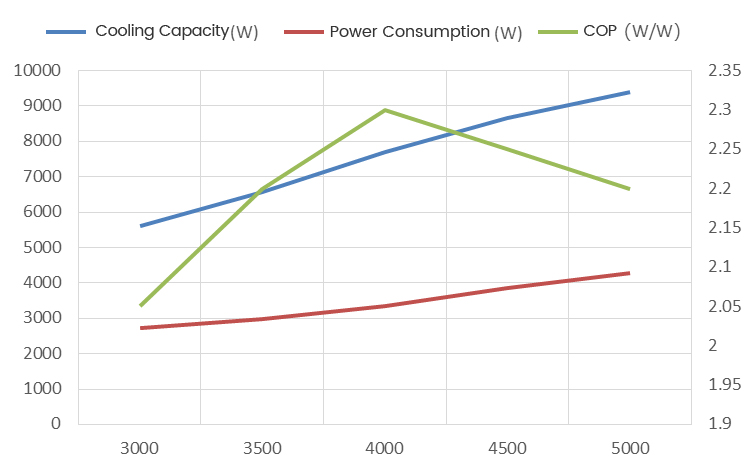

Rated Cooling Capacity | 5600W(3000rpm) | 7690W(4000rpm) | 9400W(5000rpm) | 5600W(3000rpm) | 7690W(4000rpm) | 9400W(5000rpm) |
额定电功率Rated Power Consumpiton | 2730W(3000rpm) | 2990W(4000rpm) | 4272W(5000rpm) | 2730W(3000rpm) | 2990W(4000rpm) | 4272W(5000rpm) |
COP | 2.05 | 2.3 | 2.2 | 2.05 | 2.3 | 2.2 |
Maximum Current | 20A | 20A | 20A | 15A | 15A | 15A |
重量Weight | 9.0KG | 9.0KG | 9.0KG | 9.0KG | 9.0KG | 9.0KG |
Test conditions: Suction pressure 0.3MPa (A), exhaust pressure 1.5MPa (A), superheat 10 ° C, and supercooling 5 ° C |
Model | WS66B | |||||
Displacement | 66ml/r | |||||
Range of Voltage | DC 380V | DC 600V | ||||
Refrigerant | HFC 134a | HFC 134a | HFC 134a | HFC 134a | HFC 134a | HFC 134a |
Oil | POE 68 | POE 68 | POE 68 | POE 68 | POE 68 | POE 68 |
Charge Amount | 160ml | 160ml | 160ml | 160ml | 160ml | 160ml |
Range of Roation | 3000-5000rpm | 3000-5000rpm | 3000-5000rpm | 3000-5000rpm | 3000-5000rpm | 3000-5000rpm |
Speed Range | PWM/CAN/LIN | PWM/CAN/LIN | PWM/CAN/LIN | PWM/CAN/LIN | PWM/CAN/LIN | PWM/CAN/LIN |
Rated Cooling Capacity | 5600W(3000rpm) | 7690W(4000rpm) | 9400W(5000rpm) | 5600W(3000rpm) | 7690W(4000rpm) | 9400W(5000rpm) |
额定电功率Rated Power Consumpiton | 2730W(3000rpm) | 2990W(4000rpm) | 4272W(5000rpm) | 2730W(3000rpm) | 2990W(4000rpm) | 4272W(5000rpm) |
COP | 2.05 | 2.3 | 2.2 | 2.05 | 2.3 | 2.2 |
Maximum Current | 20A | 20A | 20A | 15A | 15A | 15A |
重量Weight | 9.0KG | 9.0KG | 9.0KG | 9.0KG | 9.0KG | 9.0KG |
Test conditions: Suction pressure 0.3MPa (A), exhaust pressure 1.5MPa (A), superheat 10 ° C, and supercooling 5 ° C |
