WS50D

Availability:
Quantity:
Inquire Add to Basket

Model WS50D
Displacement 50ml/r
Range of Voltage DC   380V DC 600V
Refrigerant HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a
Oil POE 68 POE 68 POE 68 POE 68 POE 68 POE 68
Charge Amount 160ml 160ml 160ml 160ml 160ml 160ml
Range of Roation 3000-5000rpm 3000-5000rpm 3000-5000rpm 3000-5000rpm 3000-5000rpm 3000-5000rpm
Speed Range PWM/CAN/LIN PWM/CAN/LIN PWM/CAN/LIN PWM/CAN/LIN PWM/CAN/LIN PWM/CAN/LIN

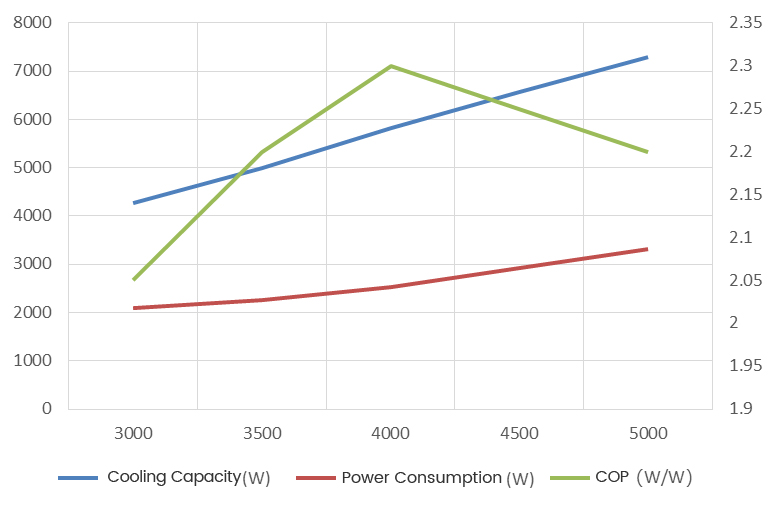

Rated Cooling Capacity 4270W（3000rpm） 5830W（4000rpm） 7290W（5000rpm） 4270W（3000rpm） 5830W（4000rpm） 7290W（5000rpm）
Rated Power Consumpiton 2083W（3000rpm） 2534W（4000rpm） 3313W（5000rpm） 2083W（3000rpm） 2534W（4000rpm） 3313W（5000rpm）
COP 2.05 2.3 2.2 2.05 2.3 2.2
Maximum Current 20A 20A 20A 15A 15A 15A
Weight 8.5KG 8.5KG 8.5KG 8.5KG 8.5KG 8.5KG
Test conditions: Suction pressure 0.3MPa (A), exhaust pressure 1.5MPa (A), superheat 10 ° C, and supercooling 5 ° C
