WS20C

Availability:
Quantity:
Inquire Add to Basket

Displacement 20ml/r
Range of Voltage DC 12V DC 24V DC 48V DC 60V DC 72V DC 96V DC 144V
Refrigerant HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a
Oil POE 68 POE 68 POE 68 POE 68 POE 68 POE 68 POE 68
Charge Amount 80ml 90ml 90ml 90ml 90ml 90ml 90ml
Range of Roation 1000-4000rpm 1000-6000rpm 1000-6000rpm 1000-6000rpm 1000-6000rpm 1000-6000rpm 1000-6000rpm
Speed Range PWM/CAN/LIN PWM/CAN/LIN PWM/CAN/LIN PWM/CAN/LIN PWM/CAN/LIN PWM/CAN/LIN PWM/CAN/LIN

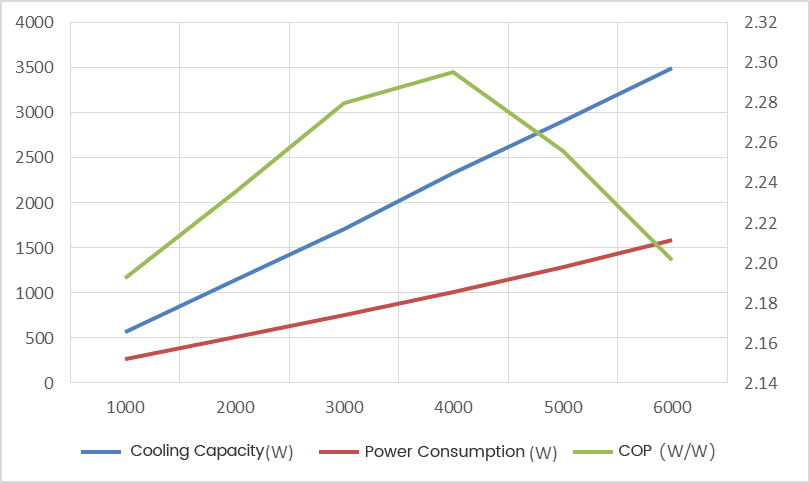

Rated Cooling Capacity 2330W（4000rpm） 3500W（6000rpm） 3500W（6000rpm） 3500W（6000rpm） 3500W（6000rpm） 3500W（6000rpm） 3500W（6000rpm）
Rated Power Consumpiton 1015W（4000rpm） 1595W（6000rpm） 1595W（6000rpm） 1595W（6000rpm） 1595W（6000rpm） 1595W（6000rpm） 1595W（6000rpm）
COP 2.3 2.2 2.2 2.2 2.2 2.2 2.2
Maximum Current 120A 100A 50A 50A 33A 30A 20A
Weight 6.0KG 6.0KG 6.0KG 6.0KG 6.0KG 6.0KG 6.0KG
Test conditions: Suction pressure 0.3MPa (A), exhaust pressure 1.5MPa (A), superheat 10 ° C, and supercooling 5 ° C
